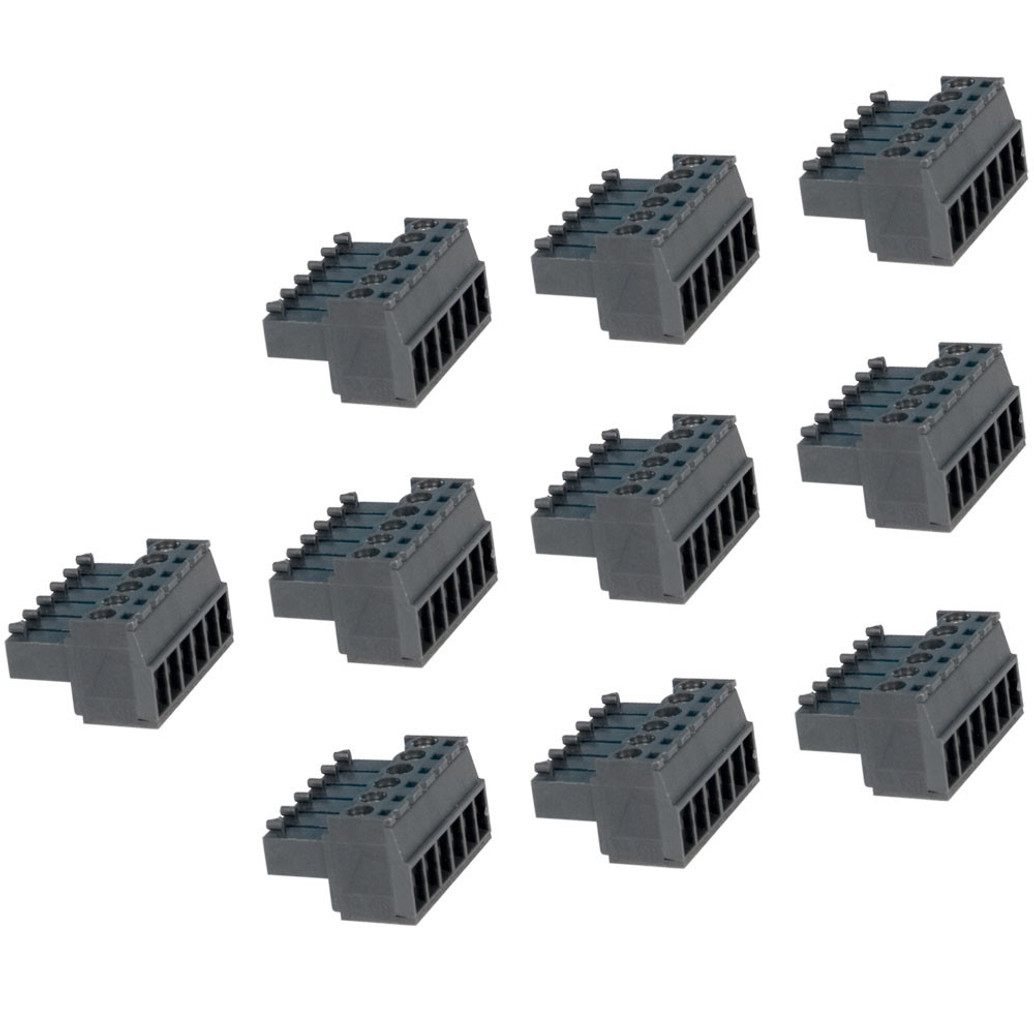

Terminal Blocks - 6 Position Screw Terminal (10 Pack)

$32.00

In Stock:

Friction fit design prevents accidental separation of terminal block due to vibration
Captive screw cannot work loose or fall out
Terminal blocks are keyed to prevent inserting upside down
Elevator-style clamping mechanism accepts wire diameters on 16-28 AWG

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

The TB-SC06-10 includes ten 6-position screw terminal blocks with 3.5mm centerline spacing. The removable terminal blocks are keyed to prevent being inserted upside down.

The elevator-style clamping mechanism accepts wire diameters from 16-28AWG and integrates a captive screw that cannot work loose or fall out. The terminal block's friction fit design prevents accidental separation due to vibration.

Replace lost or missing screw terminals on your SeaI/O 410, 420, 430, 440, 450, 470, 530 or 540 modules using item# TB-SC9-KT, which includes eight 5-position and one 6-position screw terminal blocks. Spring clamp and screw terminal blocks with 4-position or 5-position terminals are also available in packs of ten.
