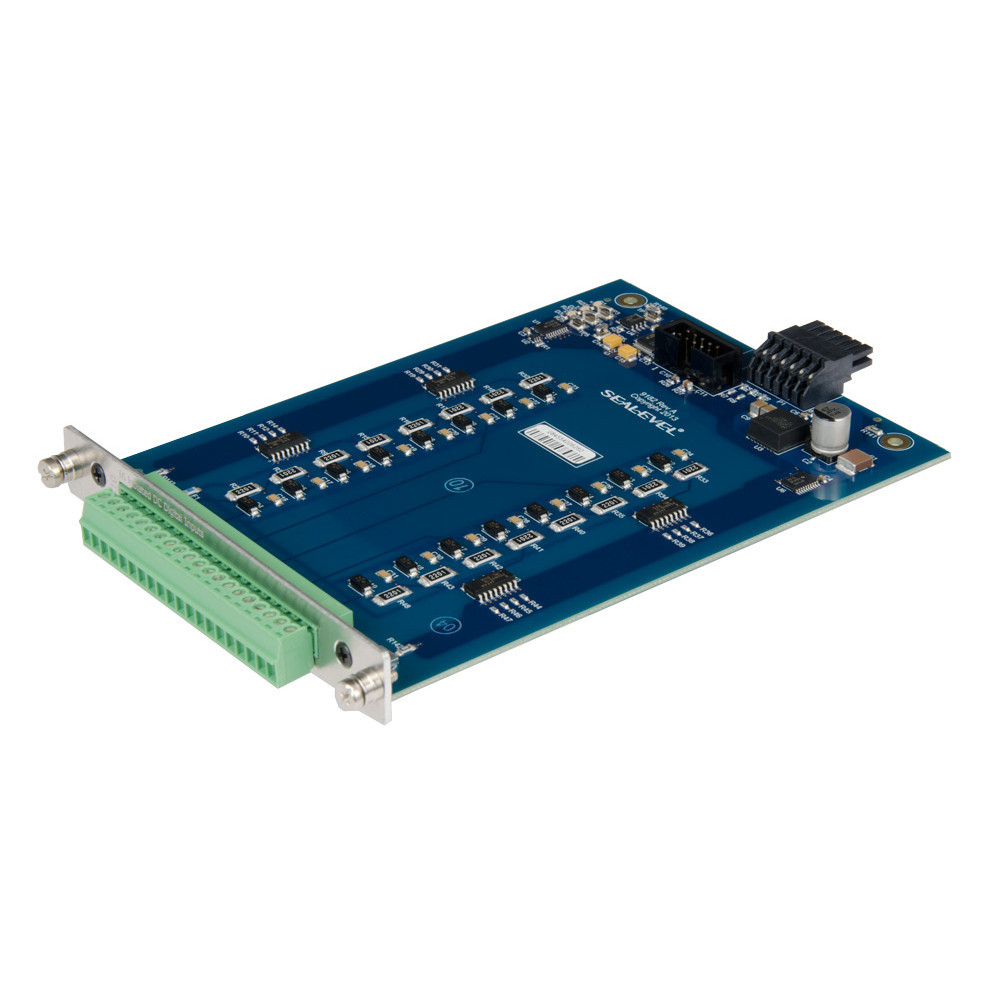

SeaRAQ 16 Isolated Digital Inputs (3-30 VDC)

  • Includes 20-position, removable, high-retention Phoenix terminal blocks
  • Inputs are compatible with 3-30 VDC input range and can be used with TTL level signals
  • Sealevel SeaMAX software supports Microsoft Windows and Linux operating systems
  • Field wiring is simplified via removable 3.5mm terminal blocks compatible with 16-30 AWG wire
  • Digital expansion module with 16 isolated DC digital inputs
  • 1500 VAC field-to-logic isolation
  • Industry-standard Modbus RTU interface
  • Input power provided via backplane connector

Product Details

SeaRAQ™ I/O expansion modules provide unprecedented expansion capabilities for Sealevel Relio R3 and Relio R4 industrial computers. The SeaRAQ 8510 expansion board adds 16 channels of isolated digital inputs designed for 3-30 VDC. The inputs are compatible with TTL signal levels.

To protect the host computer from harmful voltage spikes commonly found in industrial environments, the 8510 provides 1500 VAC isolation. Applications include connecting sensors, switches, pushbuttons, and other low voltage inputs. For easy, reliable field wiring, the board uses removable, high-retention terminal block connectors.

Sealevel’s SeaMAX software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. Communicate using industry-standard Modbus RTU protocol or use the Sealevel SeaMAX API software libraries from your application program.

Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.

  • Specifications
  • Features
  • Reviews (0)

Specifications

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Family

    SeaRAQ

  • Dimensions

    PCB is 6.00" (L) x 4.35" (W)

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing
