SeaISO Single-Port Ruggedized USB Isolator Cable

(0)

SeaISO Single-Port Ruggedized USB Isolator Cable

$205.00

In Stock:

Powered by USB host connection; supports energy transfer with isolation
Protects host and field equipment from damaging surges and transients
UL Recognized in accordance with EN60601-1 3rd Edition requirements
Maximum of 1.1 A output current when connected to a high-power USB port
Features medical-grade 4 kV isolation, data and power
Compliant with CE, FCC, RoHS and WEEE directives
Provides 500 mA to downstream USB devices when connected to 1 A USB port
Ruggedized construction using molded connectors with overmold "bump" in the cable design
Provides 300 mA to downstream USB devices when connected to standard 500 mA USB port
USB 2.0 compatible device supports full-speed 12 Mbps operation
Supported in Microsoft Windows, Linux and other USB aware operating systems
Total cable and device length of 72 inches

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

The SeaISO™ ISO-1R is a single-port, ruggedized inline USB isolator cable that offers a simple method of protecting host and field equipment from damaging transients and surges commonly found in commercial, industrial and medical environments. The ISO-1R is UL Recognized, in accordance with EN60601-1 3rd Edition, and protects both the data and power lines with 4 kV of medical-grade isolation between the host control system and connected USB equipment.

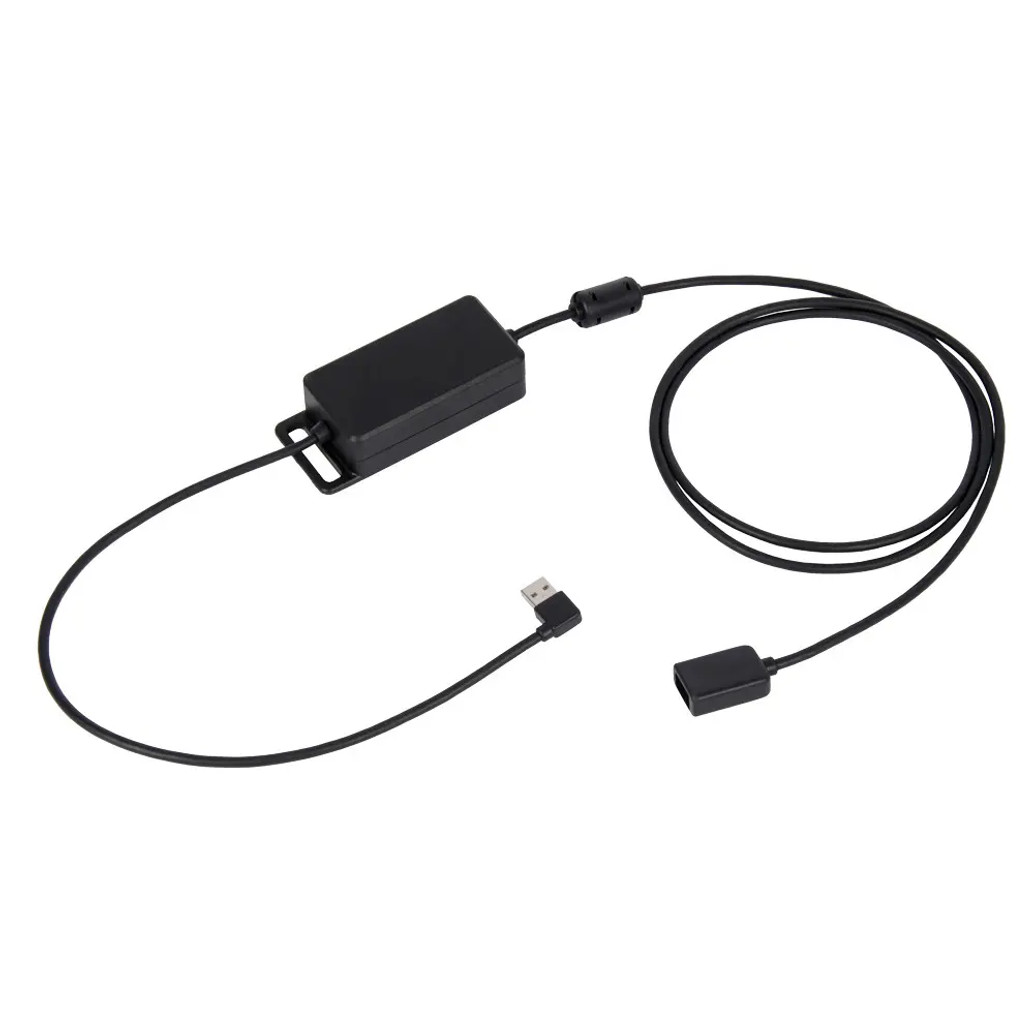

The ISO-1R utilizes Sealevel’s expertise in military-grade designs by incorporating a ruggedized, TPE overmolded cable “bump” that improves the reliability and durability in medical, industrial and mobile applications. The isolator is essentially a 6 foot, ruggedized USB cable extender. The “bump” includes an integrated loop for convenient hanging or mounting. The host connector is a Type A right-angle USB connector. The other end has a high-retention Type A Female USB connector that helps prevent accidental cable disconnections.

The ISO-1R is USB bus powered, eliminating the need for external power. The efficient DC/DC design allows energy transfer over the isolation barrier. The isolator provides up to 300 mA to a downstream USB device when connected to a standard 500 mA USB port. Additionally, the isolator provides a full 500 mA to a downstream device when connected to a USB port capable of sourcing 1 A, or greater.

Supported in Microsoft Windows, Linux, and other USB aware operating systems, the ISO-1 requires no separate drivers and is easy to install. Simply plug the isolator into an available USB port with the included cable, and it is automatically recognized as a generic USB hub device. The ISO-1 is a USB 2.0 compatible device connecting to the host over a high-speed link and features full-speed (12 Mbps) data rates between the downstream USB device.

Standard operating temperature range is -20°C to 60°C and extended temperature ranges are optional. If you need a USB isolator with removable cables, see the ISO-1. If you need an OEM USB isolator to integrate into your application, see the ISO-1-OEM.

Note: This item is intended for OEM applications and a minimum order quantity (MOQ) may apply. For low volume applications and testing, please use the ISO-1 or ISO-1-OEM versions. Please contact your sales representative with any questions.
