SeaISO Single-Port Inline USB Isolator OEM Module

(0)

SeaISO Single-Port Inline USB Isolator OEM Module

$152.00

In Stock:

Features medical-grade 4 kV isolation, data and power
Powered by USB host connection; supports energy transfer with isolation
Protects host and field equipment from damaging surges and transients
Provides 300 mA to downstream USB devices when connected to standard 500 mA USB port
Provides 500 mA to downstream USB devices when connected to 1 A USB port
Compliant with CE, FCC, RoHS and WEEE directives
USB 2.0 compatible device supports full-speed 12 Mbps operation
Maximum of 1.1 A output current when connected to a high-power USB port
High-retention USB connectors prevent accidental disconnection of USB cable
Supported in Microsoft Windows, Linux and other USB aware operating systems

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

For applications that require embedded USB isolation, the SeaISO™ ISO-1-OEM is the ideal solution. The OEM single-port, inline USB isolator offers a simple method of protecting host and field equipment from damaging transients and surges commonly found in commercial, industrial and medical environments. The ISO-1-OEM protects both the data and power lines with 4 kV of medical-grade isolation between the host control system and connected USB equipment.

The ISO-1-OEM is USB bus powered and the efficient DC/DC design allows energy transfer over the isolation barrier. The isolator provides up to 300 mA to a downstream USB device when connected to a standard 500 mA USB port. Additionally, the isolator can provide a full 500 mA to a downstream device when connected to a USB port capable of sourcing 1 A, or greater. Convenient high-retention USB connectors prevent accidental cable disconnections.

Supported in Microsoft Windows, Linux, and other USB aware operating systems, the ISO-1-OEM requires no separate drivers. The isolator is easy to install and is automatically recognized as a generic USB hub device. The ISO-1-OEM is a USB 2.0 compatible device connecting to the host over a high-speed link and features full-speed (12 Mbps) data rates between the downstream USB device.

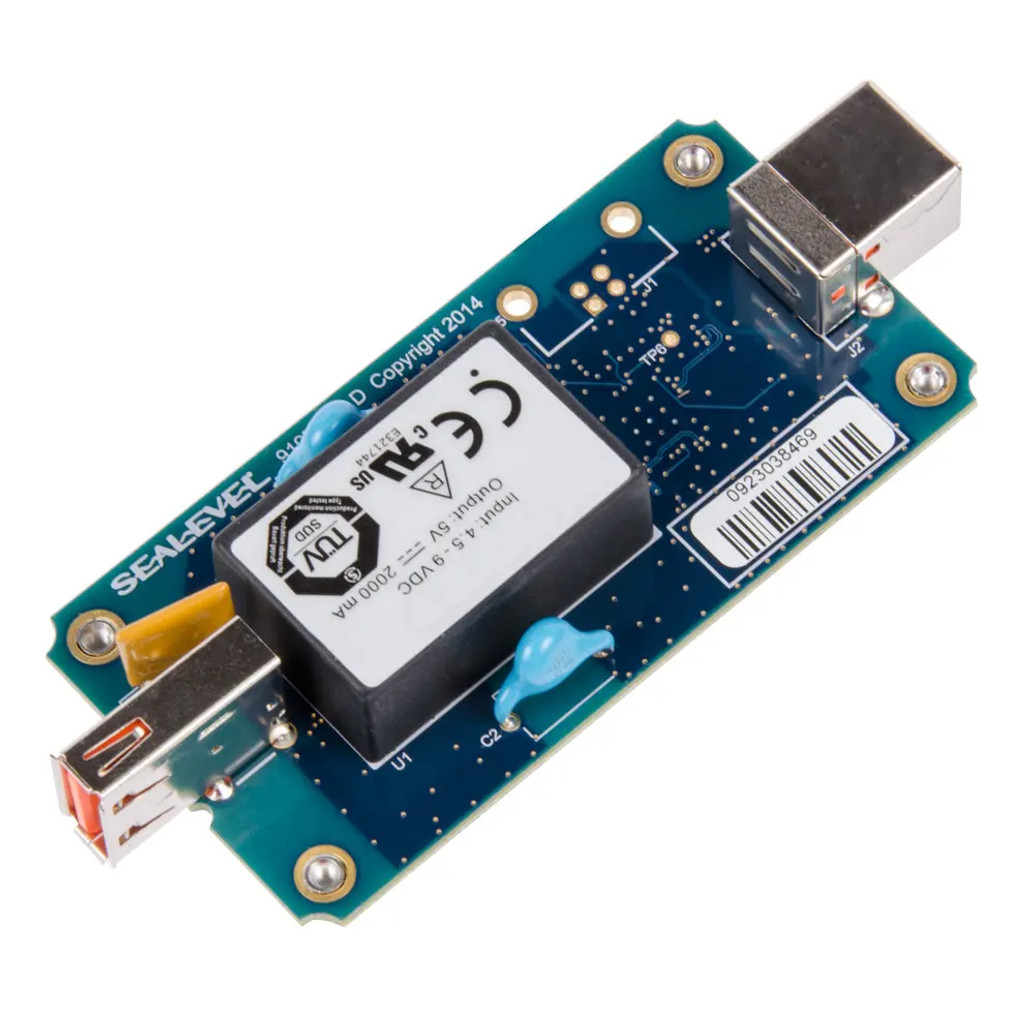

The printed circuit board includes M2 x 4mm threaded standoffs to simplify mounting in your application. Standard operating temperature range is -20°C to 60°C and extended temperature ranges are optional. A variety of USB cables are available as accessories. If you need a USB isolator with removable cables, see the ISO-1. If you need a ruggedized USB isolator cable, see the ISO-1R.
