Industrial Computer; 500MHz AMD Geode LX800; 512MB RAM

(0)

Industrial Computer; 500MHz AMD Geode LX800; 512MB RAM

$854.00

In Stock:

CompactFlash module is accessible without opening the enclosure
Two 10/100BaseT RJ45 Ethernet ports
Four high-speed USB 2.0 ports
Includes 512MB RAM, max 1GB RAM (DDR PC2700 200-Pin SODIMM, 333 MHz, Non-ECC)
COM2 defaults to 2-wire RS-485 and can be accessed via DB9M or RJ45 pass-through connectors
Embedded 500MHz AMD Geode LX800 CPU
Four DB9M serial ports (COM1, 3, 4 = RS-232, COM2 = RS-232/422/RS-485)
RJ45 Modbus RTU RS-485 pass-through port (supports N-series SeaI/O expansion modules)
One DB15 UXGA Analog video connector (supports 1600x1200 @ 100Hz and 1920x1440 @ 85Hz)
Solid-state operation using internal CompactFlash memory
Stereo audio out via standard 1/8" speaker connector
8 Bits of general purpose I/O (GPIO) available on 10-position removable screw terminal
System power via modular connector
One DB25F parallel printer port
6-position screw terminal for optional system power and RS-485 2-wire interface
One PS2 port for keyboard and mouse (includes Y-cable)

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

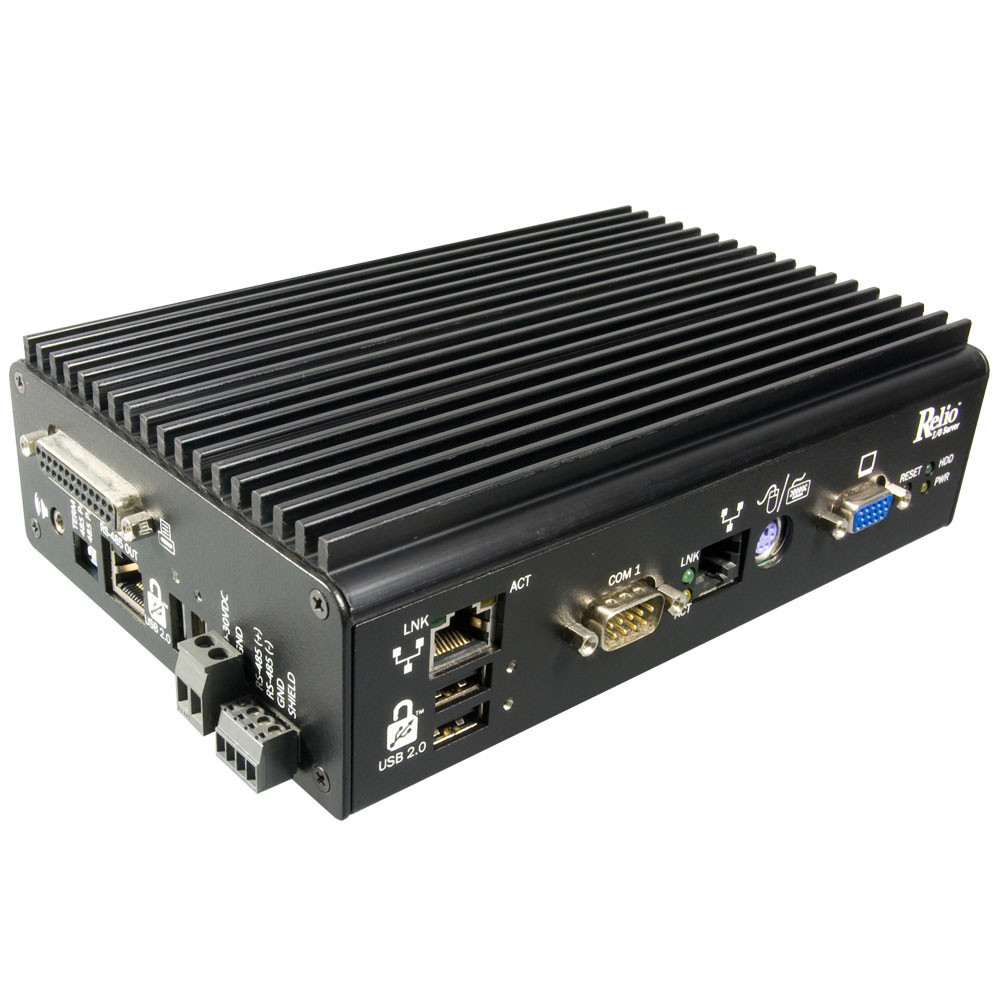

The Relio R1320 delivers the processing power of a desktop computer, yet is small enough to be mounted virtually anywhere. The system is housed in a compact, rugged metal enclosure with the same footprint as Sealevel SeaI/O modules. Powered by a 500MHz AMD Geode LX800 CPU and 512MB RAM, the R1320 system offers low power consumption and operates over a wide temperature range. Standard I/O features include two 10/100BaseT Ethernet, four USB, 8 bit GPIO, a parallel printer port and four serial ports. The R1320 is powered from your 9-30VDC source, or select from a variety of Sealevel power supply options.

The R1320 can operate from CompactFlash and is supported by either XP Embedded or embedded Linux operating systems. For applications that require disk storage, order one of the high-temperature hard drive options listed under the Accessories tab. Optional brackets allow for versatile mounting to walls, under counters, on tabletops, or even to DIN rails.
