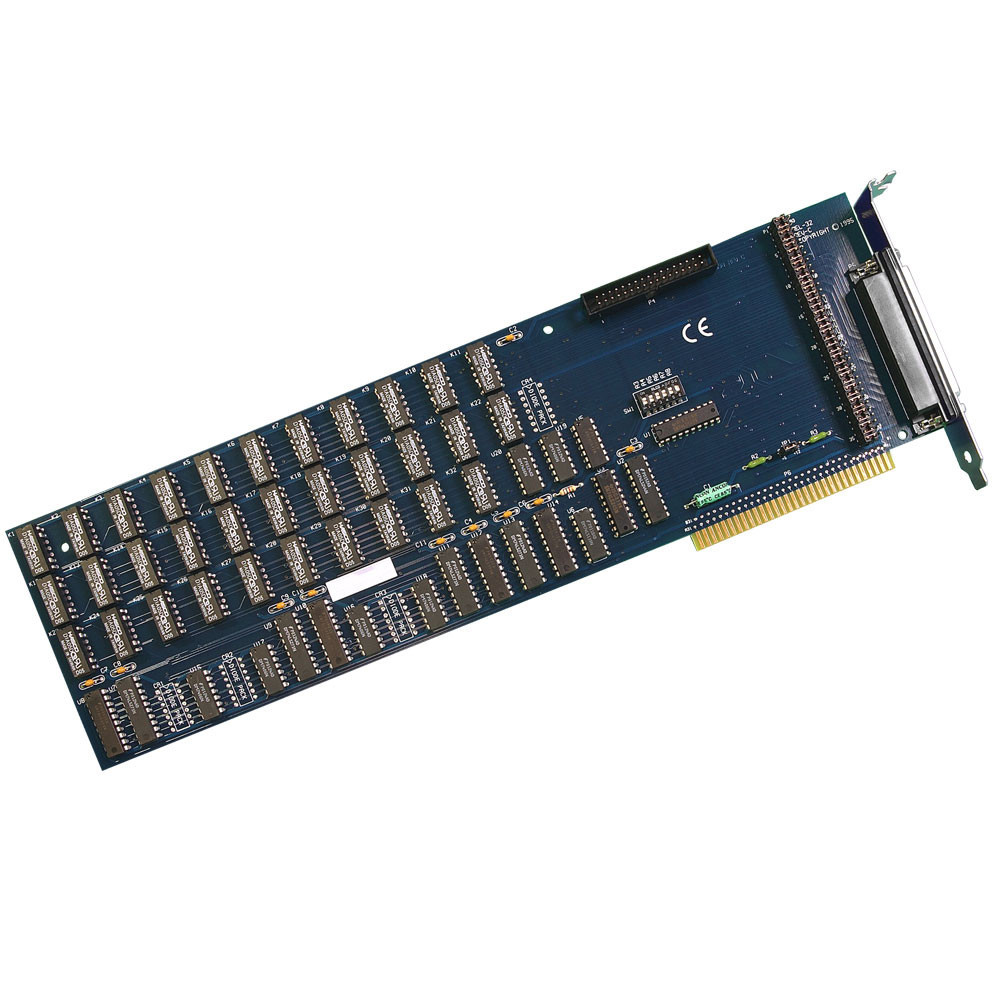

REL-32: ISA 32 Switched Relay Output Digital Interface
(0)

REL-32: ISA 32 Switched Relay Output Digital Interface

$0.00
  • 32 Reed relay outputs (SPST)
  • Selectable I/O port addressing (200H - 3F8H)
  • Software support for DOS, Linux, Windows 3.1 and Windows 95 available
  • Highly reliable 10VA DIP Reed relays
  • 4 sets of relays with each set having 8 relays
  • SeaI/O Classic software supports Windows 98, ME, NT, 2000, XP and Vista operating systems
Adding to cart… The item has been added
Print Page

Product Details

The 3098 ISA digital I/O interface relay output adapter provides four banks of eight switched Reed relays. The card's DB-37 connector brings out the A-side of all relays while the optional B-side connector brings out the B-side and commons of all relays to a second DB-37 connector. This allows access to both sides of all 32 switches. The REL-32 can easily be configured as 32 independent relays, or as a 4x8, 2x16 or 1x32 matrix switch.

Sealevel's SeaIO Classic software drivers and utilities make installation and operation easy using Microsoft Windows operating systems.

Get a jump start on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out
  • Specifications
  • Features
  • Software & Documentation
  • Reviews (0)

Specifications

  • Host Interface(s)

    ISA

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    32

  • Power Requirement

    +5V @ 800mA+12V @ 50mA

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

Features

Software & Documentation

Reviews (0)

There are no reviews associated with this product.
