DIN485+I (Isolated RS-232/422/485 Int. Converter)
(0)

DIN485+I (Isolated RS-232/422/485 Int. Converter)

$0.00
  • Data rates to 115.2K bps
  • Configurable for RS-422 or RS-485
  • Optical isolation provides protection against transients and ground loops
  • DIN rail mountable DC power supply available (Item # PS101 @ 24V or PS102 @ 12V)
  • Easily accessible terminal block connections
  • DIN rail mount design
  • Automatic RS-485 enable/disable
Adding to cart… The item has been added
Print Page

Product Details

THIS PRODUCT IS OBSOLETE. PLEASE CONTACT YOUR SALES REPRESENTATIVE FOR FURTHER INFORMATION AND NEW PRODUCT ALTERNATIVES.

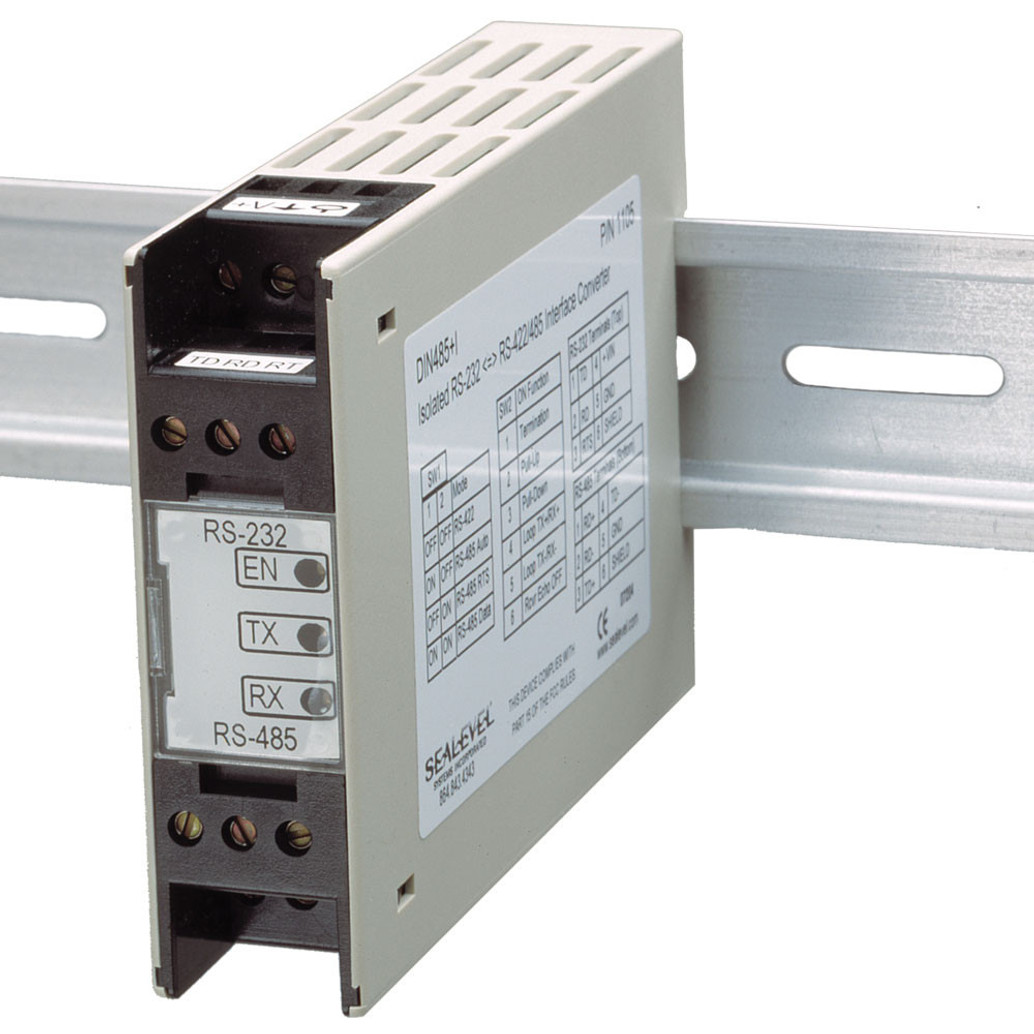

The 1105 isolated DIN rail mountable serial interface converter allows a standard RS-232 port to communicate with an individual RS-422 device or with multiple devices within an RS-485 network. Support is provided for RS-422 full duplex mode as well as RS-485 full or half duplex master and slave modes. Autobaud, Send Data, and RTS modes are supported, offering maximum flexibility to all of your application requirements.

To simplify installation and configuration, a printed copy of the Interface Converter QuickStart Guide is included with all DIN rail mountable interface converter orders.

  • Specifications
  • Features
  • Software & Documentation
  • Reviews (0)

Specifications

  • Host Interface(s)

    RS232

  • Max Data Distance

    4000 feet

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Dimensions

    4.3 (L) x 0.9 (W) x 3.0 (H)

  • Electrical Interface

    RS-232,RS-422,RS-485

Features

Software & Documentation

Reviews (0)

There are no reviews associated with this product.
