COMM+850.LPCI: 1 Port RS-232 Low Profile PCI Serial Adapter

Print Page

Product Details

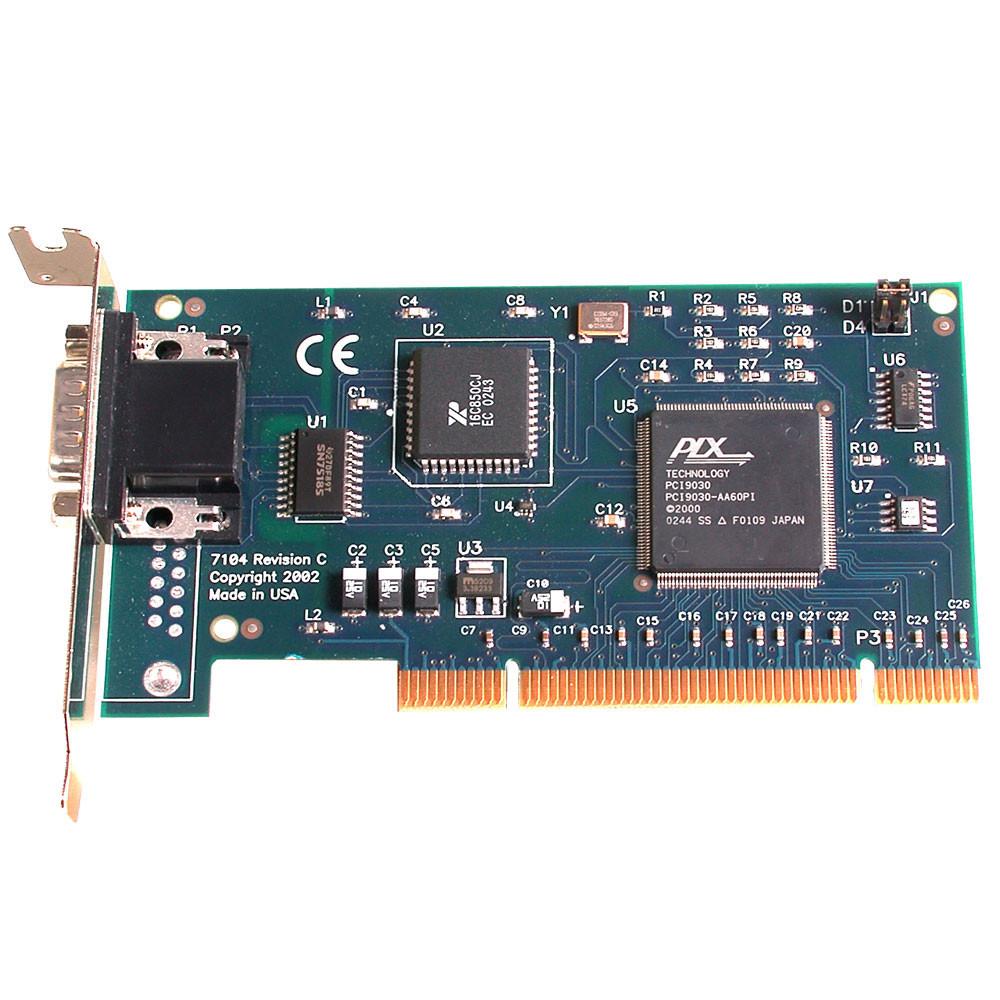

The 7104 Low Profile PCI serial interface provides one RS-232 serial port capable of data rates to 460.8K bps. The board utilizes a 16C850 UART to provide 128-byte Tx/Rx FIFOs for maximum reliability in data-intensive applications.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows or Linux operating systems.

The 7106e is a PCI Express X1 board compatible with any low profile PCI Express slot. If you have a standard size PCI Express slot, be sure to select the standard profile bracket.

The 7104 implements all modem control signals and is MD1 Low Profile and Universal Bus (3.3V and 5V) compatible. The 7104 is compatible with any low profile PCI slot. If you have a standard size PCI slot, be sure to select the standard profile bracket.
  • Specifications
  • Software & Documentation
  • Reviews (0)

Specifications

  • Host Interface(s)

    PCI (Low Profile)

  • Max Data Distance

    50 feet

  • Max Data Rate

    460.8K

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    1

  • Serial Connector(s)

    DB9M

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-232

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

Software & Documentation

Reviews (0)

There are no reviews associated with this product.
