COMM+4/232.PCIe

Call for price

In Stock:

Supports 9-bit protocol framing
Oscillator and clock prescaler support wide range of baud rates
16C954 buffered UARTs with 128-byte FIFOs
All modem control signals implemented
PCI Express X1 compliant
Included 36" cable terminates to four DB25M connectors (Item# CA199)
compatible with any low profile PCI Express slot. A standard profile bracket is also included
Each port supports data rates to 921.6K bps

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

THIS PRODUCT IS OBSOLETE DUE TO LACK OF COMPONENT AVAILABILITY. PLEASE MIGRATE TO 7406ec.

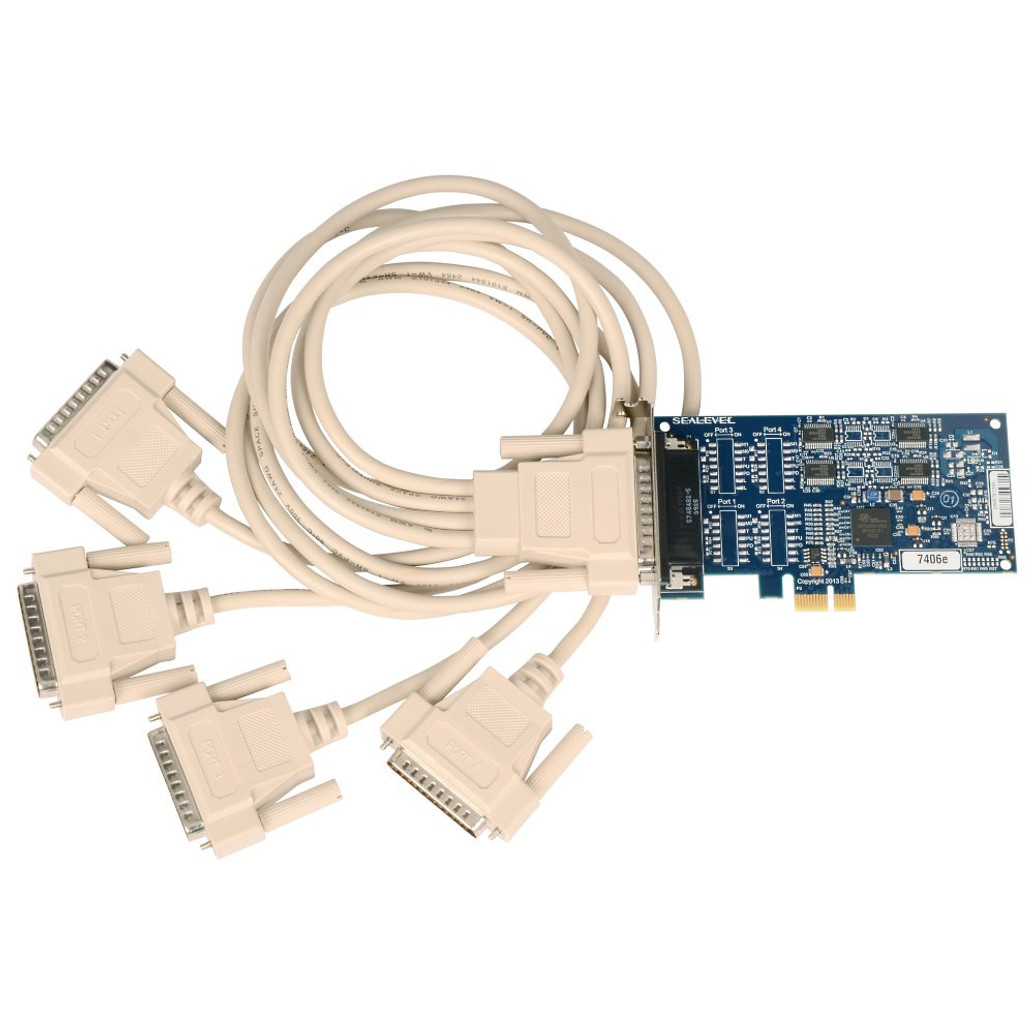

The 7406e low profile PCI Express serial interface provides four RS-232 serial ports. For maximum compatibility with a wide range of peripherals, the board supports all standard RS-232 modem control signals. The serial ports utilize a 16C954 UART with 128-byte Tx/Rx FIFOs that enables data rates to 921.6K bps for reliable high-speed communications in data-intensive applications. This high-performance UART includes 9-bit framing support and is fully software compatible with legacy 16550 applications. In addition, the board derives a 62.5 MHz clock from the PCI Express link. This ultra-high-speed clock is divided by a flexible 8-bit clock prescaler with 1/8 steps to provide support for the widest range of standard and non-standard baud rates.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows and Linux operating systems.

The 7406e is a PCI Express X1 board compatible with any low profile PCI Express slot. A standard profile bracket is also included. The board includes a 36-inch cable that terminates to four DB25M connectors.
