COMM+16.PCI: 16-Port DB25 PCI RS-232 Serial Adapter
(0)

COMM+16.PCI: 16-Port DB25 PCI RS-232 Serial Adapter

$1,558.00
Adding to cart… The item has been added
Print Page

Product Details

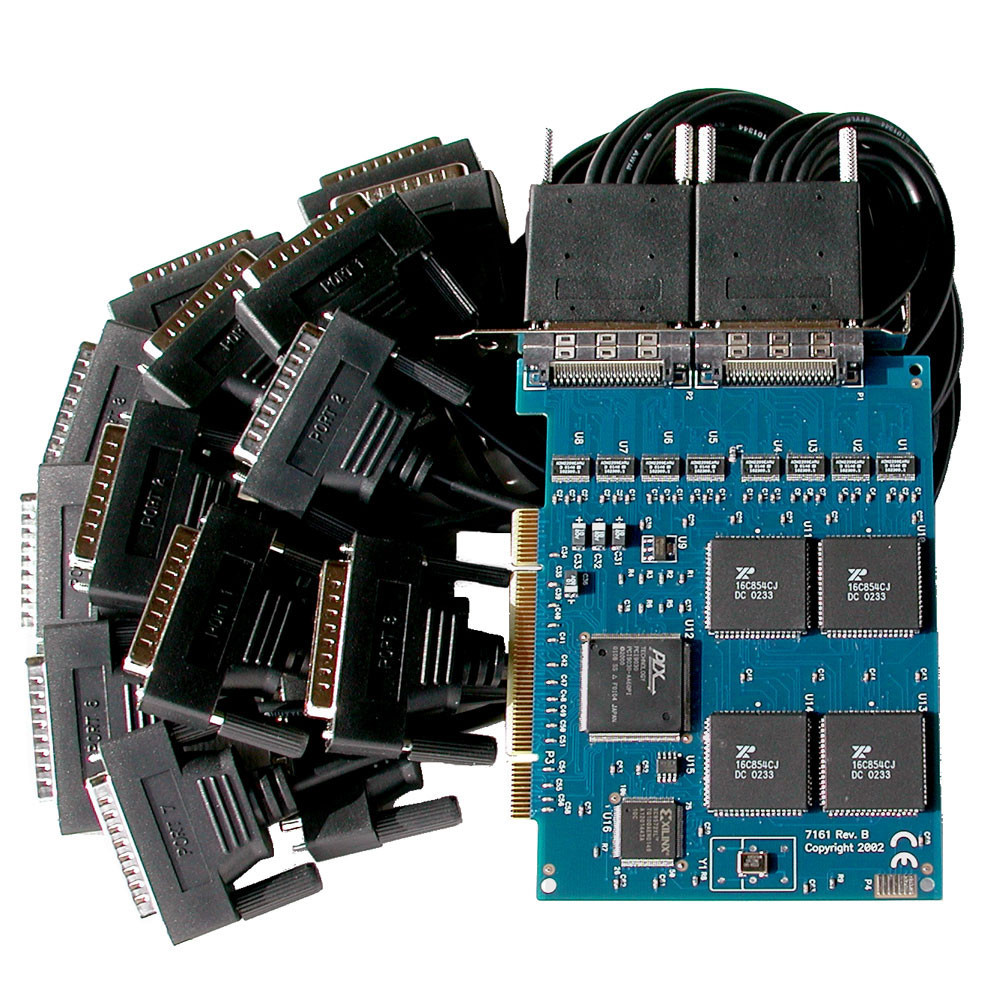

The 7161 PCI serial interface provides sixteen RS-232 serial ports capable of data rates to 460.8K bps. Each RS-232 port implements all modem control signals for maximum compatibility with a wide range of peripherals. The board is Universal Bus (3.3V and 5V) compatible and utilizes 16C854 UARTs to provide 128-byte Tx/Rx FIFOs for maximum reliability in data intensive applications.

The board ships with two 36 inch cables that terminate to sixteen DB25M connectors. For DB9M connectors, select the appropriate cable option.

  • Specifications
  • Software & Documentation
  • Reviews (0)

Specifications

  • Host Interface(s)

    PCI (Standard Profile)

  • Max Data Distance

    50 feet

  • Max Data Rate

    460.8K

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • # of Ports

    16

  • Serial Connector(s)

    DB25M

  • Storage Temperature

    -50°C to 105°C (-58°F to 221°F)

  • Communications Chip

    16C854

  • Electrical Interface

    RS-232

  • Humidity Range

    10-90% Relative Humidity/Non-Condensing

Software & Documentation

Reviews (0)

There are no reviews associated with this product.
