C4-104.Ultra Kit: PC104 4 Async RS232/422/485; Portholes Kit

Call for price

In Stock:

3541-KT

Automatic RS-485 enable/disable
16C864 buffered UART with 128-byte FIFOs
Each port software selectable for RS-232, RS-422, or RS-485
Data rates to 921.6K bps

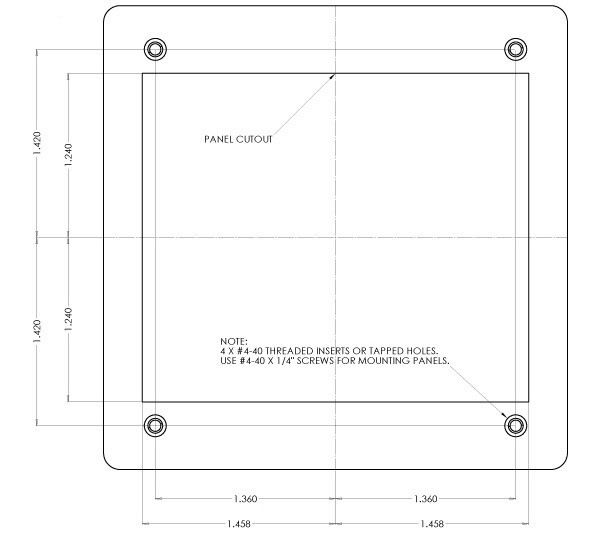

Includes DB9 mounting plate and ribbon cable for installation in Relio enclosure
Termination, pull-ups, and pull-down resistors for each port are software selectable
Right-angle connector available for OEM opportunities, 40-pin vertical header connector standard

Have a Question?
1-864-843-4343
Chat
Email

Print Page

Product Details

The 3541 provides four software-selectable RS-232, RS-422, or RS-485 ports. RS-232, RS-422, or RS-485 mode may be selected independently via software command for each of the four ports, eliminating the need for setting jumpers or DIP switches.

The board is designed using the XR16C864 UART, which provides a 128-byte FIFOs, 8 times larger than boards designed with 16C550 compatible parts. The larger buffers allow error-free operation even in high-speed applications. In RS-485 mode the C4-104.ULTRA offers automatic control of the RS-485 driver enable for trouble free network master arbitration. Additionally, the board allows RS-485 network termination, critical to robust multi-drop communication, to be selectively added to the circuit via a simple software command.

Includes 3541 PC/104 board, ribbon cable, and DB9 mounting plate for installation in an enclosure.

Note: This item has a minimum order quantity (MOQ) of 25 units. Please contact your sales representative
